MEDENUS RSP 254

The pilot operated regulators series RSP 254/255 are applicable to applications for outlet pressures from 10 mbar up to 12 bar and needed accuracy class up to 1%. With 3 different versions of pilots we always have the perfect match to the requirements of your projects up to 16 bar inlet pressure. The pilot R 70-10 is used for high pressure applications from 500 mbar to 12 bar outlet pressure especially needed in the industrial area, gas furnaces etc. but also in the gas distribution and for manufacturers of gas engines. R 70-20 is developed as a special device with an integrated 1:2 booster and an external I/P converter (option) we can realize follow set point systems for gas engines. Pilot R 70-100 is the perfect solution when it comes to low pressure applications from 10 mbar to 500 mbar outlet pressure with very high accuracy. R 70-100 is mainly used in the city gas distribution but also in the industrial area.

Read more
Contact us



Downloads

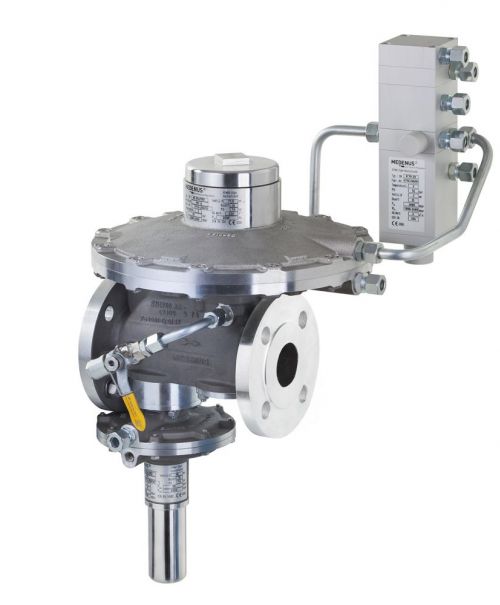

MEDENUS RSP254/255

Joy

MEDENUS is for us not only brand, MEDENUS is an expression of joy in the challenge to do something special for our customers, every day.


Alexander Christiani, CEO

The MEDENUS Add-ons

10 reasons for a good working relationship


Extensive product portfolio: the choice is yours!

Customised solutions and special designs: talk to us!

"DÜSE" design programme: leave nothing to chance!

Shortest delivery times and spare parts: we won't leave you out in the rain!

Certified according to ISO 9001, quality standard products: with us you can be sure!

Special tools? You can service our appliances without them!

Modular design of the devices: be flexible for the most diverse requirements!

100% Made in Germany, 100% hydrogen-ready!

Online service 24/7: documents, maintenance videos, ... around the clock!

Expertise: benefit from our in-house training courses at your premises or training courses at our location!


MEDENUS RSP 254

The gas pressure regulators RSP 254/255 are suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request). RSP 254 is available with flange connections from DN 25 to DN200, RSP 255 from DN50 to DN100 and a maximum inlet pressure of 16,0 bar. All gas pressure regulators are certified by DVGW and CE.

The pilot operated regulators series RSP 254/255 are applicable to applications for outlet pressures from 10 mbar up to 12 bar and needed accuracy class up to 1%. With 3 different versions of pilots we always have the perfect match to the requirements of your projects up to 16 bar inlet pressure. The pilot R 70-10 is used for high pressure applications from 500 mbar to 12 bar outlet pressure especially needed in the industrial area, gas furnaces etc. but also in the gas distribution and for manufacturers of gas engines. R 70-20 is developed as a special device with an integrated 1:2 booster and an external I/P converter (option) we can realize follow set point systems for gas engines. Pilot R 70-100 is the perfect solution when it comes to low pressure applications from 10 mbar to 500 mbar outlet pressure with very high accuracy. R 70-100 is mainly used in the city gas distribution but also in the industrial area.



Contact us

R 70-10

R 70-20

R 70-100

Applications

Suitable for gases in accordance with DVGW Code of Practice G260/262 and all other neutral and non-corrosive gases (others upon request) up to a maximum inlet pressure of 16 bar.
Outlet pressure up to 12 bar
Gas temperature from -20 °C to + 60 °C

Characteristics

Pilot operated actuator with auxilary power with or without integrated safets shut off valve. Tight zero position. Material: aluminium sand cast

Types of Pilots

R 70-10: Outlet pressure 0,5 bar up to 12 bar for high pressure applications
R 70-20: 0,1 bar up to 6 bar (1:1) with optional integrated booster 1:2 ( 0,2 - 12 bar) and optional I/P converter for the gas engine industry
R 70-100: Outlet pressure 10 mbar up to 500 mbar for applications with low outlet pressure and high accuracy, e.g. for city gas distribution.

Flange connections

DN25 - DN200 according to DIN EN 1092 or ASME 16.5 B Class 150RF

Options

Available with:
Vent valve (BV), noise reduction (SR), nozzle valve (RSD), I/P Umformer. Available also with RAL coating or as special version for oxygen.

Integrated saety shut off valve

Release: lack of pressure: 5 to 1.000 mbar
Overpressure: 30 to 12.500 mbar
Optional with remote indication via Reed contact or inductive sensor. Above 4.000 mbar overpressure shut off the additional device K70 is needed.

Options safety shut off valve

Available with manual release, remote release or both. Optional alos with remote indication with Reed contact or inductive sensor.
